Nintex Workflow Best Practices

Nintex is becoming ubiquitous in the global IT landscape as adoption increases in their cloud offerings building on top of their highly successful on-premises solutions. Because of this, knowledge of good workflow design and development practices specific to Nintex is paramount.

We have developed the following short list of key tips to help optimize performance and maintainability of your solutions.

Tip #1 - Use Workflow Constants

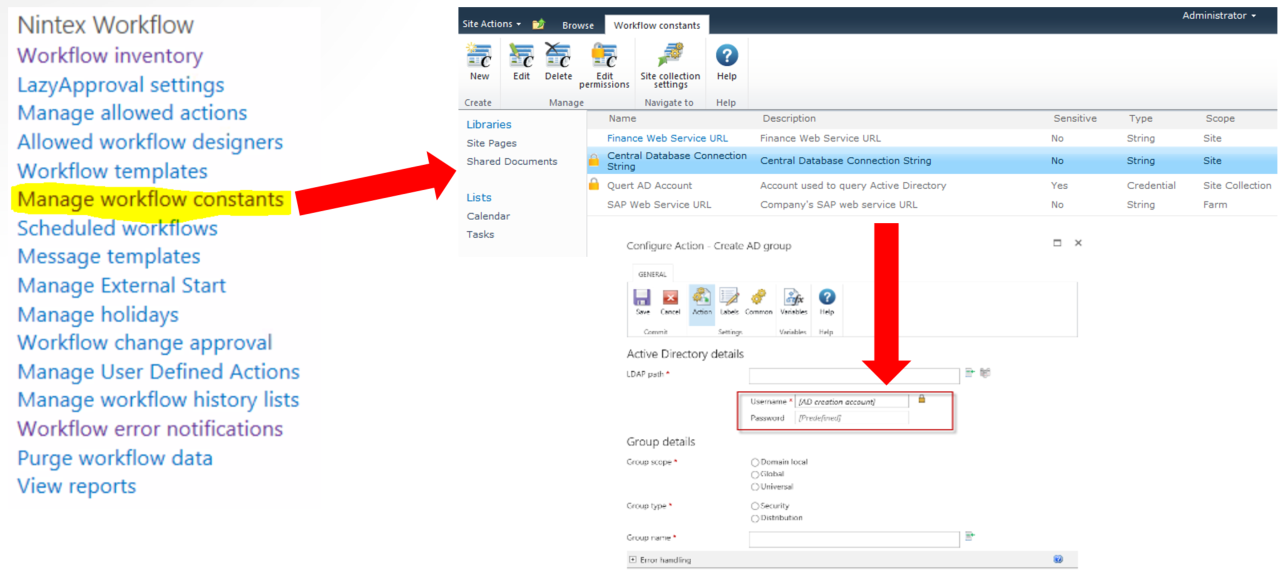

One of the best features with Nintex on-premises is their ability to store credentials for a service account as a workflow constant. When a credential has been created, you can use those credentials without having to know the name and password of the account. The credentials are stored in the Nintex Workflow configuration database and are encrypted with DES encryption. Workflow constants can be created at the Site, Site Collection, or Farm level. You can see how it gets setup in the image below.


To use a stored credential, simply click on the 'Select credentials' lock icon and select the credential constant from the lookup dialog box. More details can be found here.

Tip #2 - Processing and Load

With SharePoint Server (on-premises), a consideration that is often overlooked is the effect on performance of different actions within the workflow which can slow down its execution affecting performance. 'Execute SQL' or 'Query LDAP', for example, require more processing while 'Log to history list' and 'Build dynamic string' require much less. Nintex recommends breaking actions with a heavier load out to their own separate sub workflows.

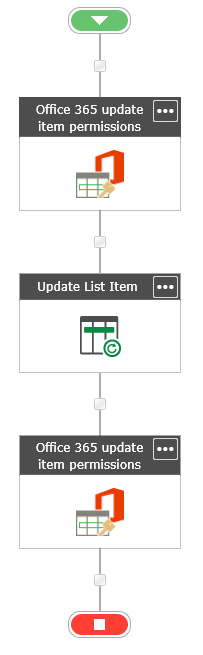

Any updates to the list, start/stop workflows, or update XML actions do not get processed immediately and are not necessarily executed in the order of the workflow. These actions will be batched up and executed according to what type of actions they are – Nintex or Microsoft. For example, this:


will actually execute as this:


This is happening due to the Nintex actions getting batched together and executing before the Microsoft "Update List Item" action. Another wrench in this puzzle is that although the Nintex batch may start first, it may not complete execution prior to the Microsoft action. You might think to put a 'Commit pending changes' action after the Microsoft action but that is still not a guarantee. The permissions action, for example, takes longer to complete and can possibly end after the 'Update List Item' action. It is better to use 'Pause for Duration' and set it to at least 30 seconds to make sure all the actions have completed before continuing. Alternatively, you can also use 'Wait for Field Change in Current Item' if that works for you. If you are on Office 365, Nintex for Office 365 does not have 'Commit pending changes' so you should replace it with a 'Pause for Duration' or 'Wait for Field Change in Current Item' action.

Tip #3 - Build Your Content

When designing your workflow, in O365 or on-premises, it is ideal to have a workflow that has the smallest number of actions. The benefits are in reduced server load, speed of execution, and reduced complexity. One of the recommended techniques used in developing workflows is building your content by adding relevant information to a variable as it becomes available.

For example, email body content often has to be formatted using basic HTML to display tables and other formatting. This can be built in a variable as the data is collected. Using a "Set Workflow Variable" action, you can set the variable to itself plus the additional formatting and data. So a var_EmailBody variable would have a value of "{Variable:var_EmailBody}<TR><TD>my new data</TD></TR>" when adding new data.

 The results of this method are very apparent. Workflows that previously looked like this:


Can now start to resemble this:


Resulting in less actions, faster execution, and a better workflow overall.

We hope that these three tips can help you improve the workflows that you are writing.  We will be publishing additional tips in the series soon.
